Description
Basic Information

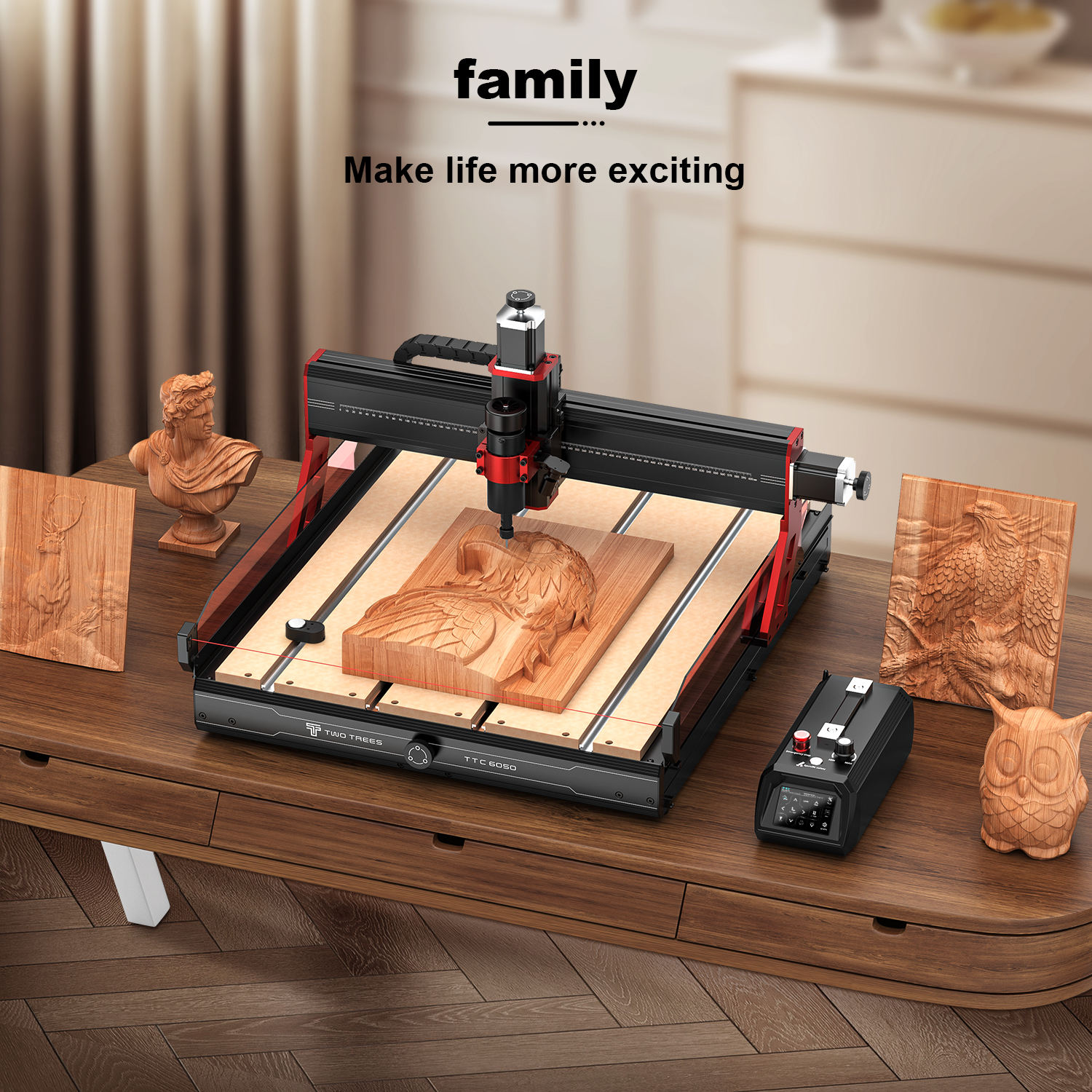

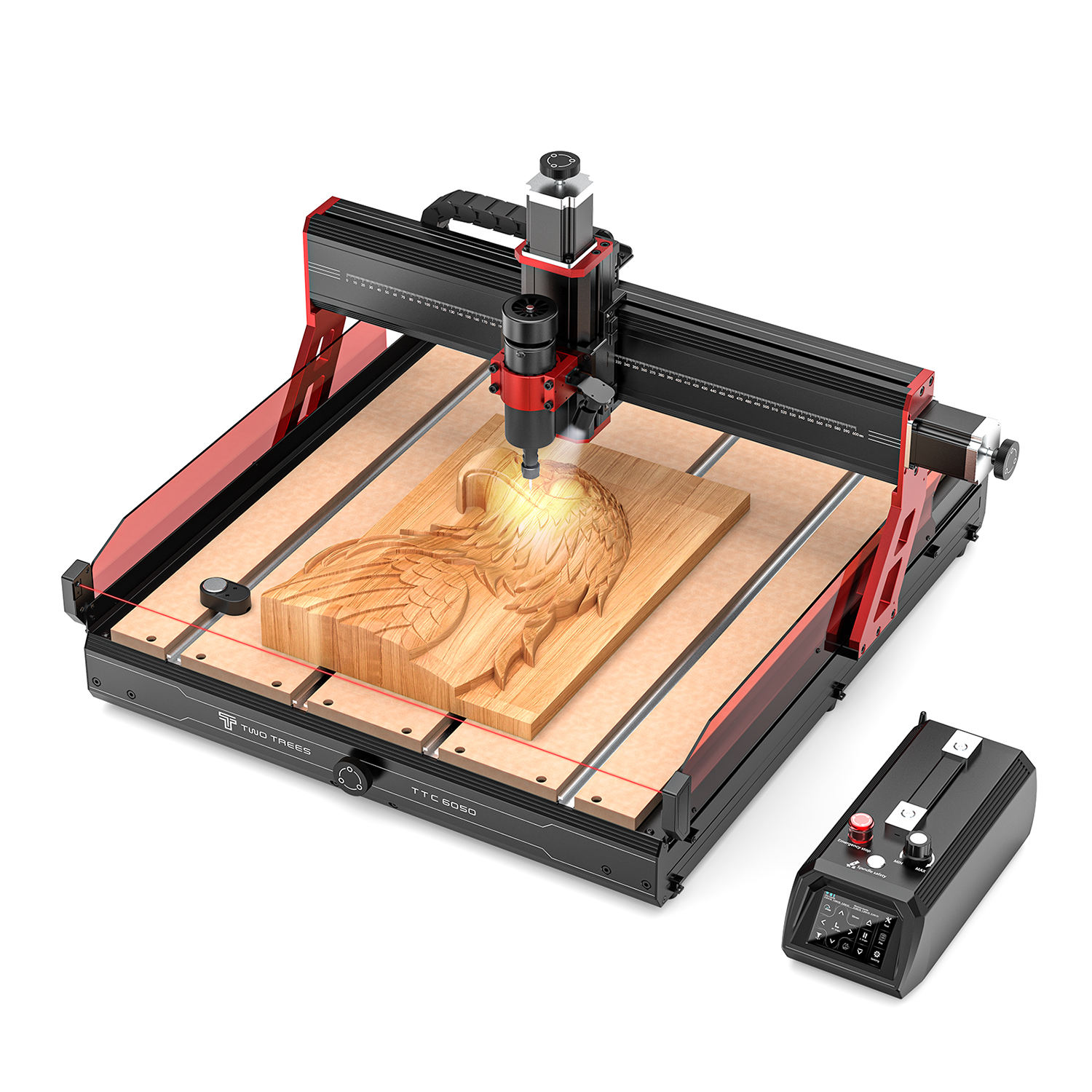

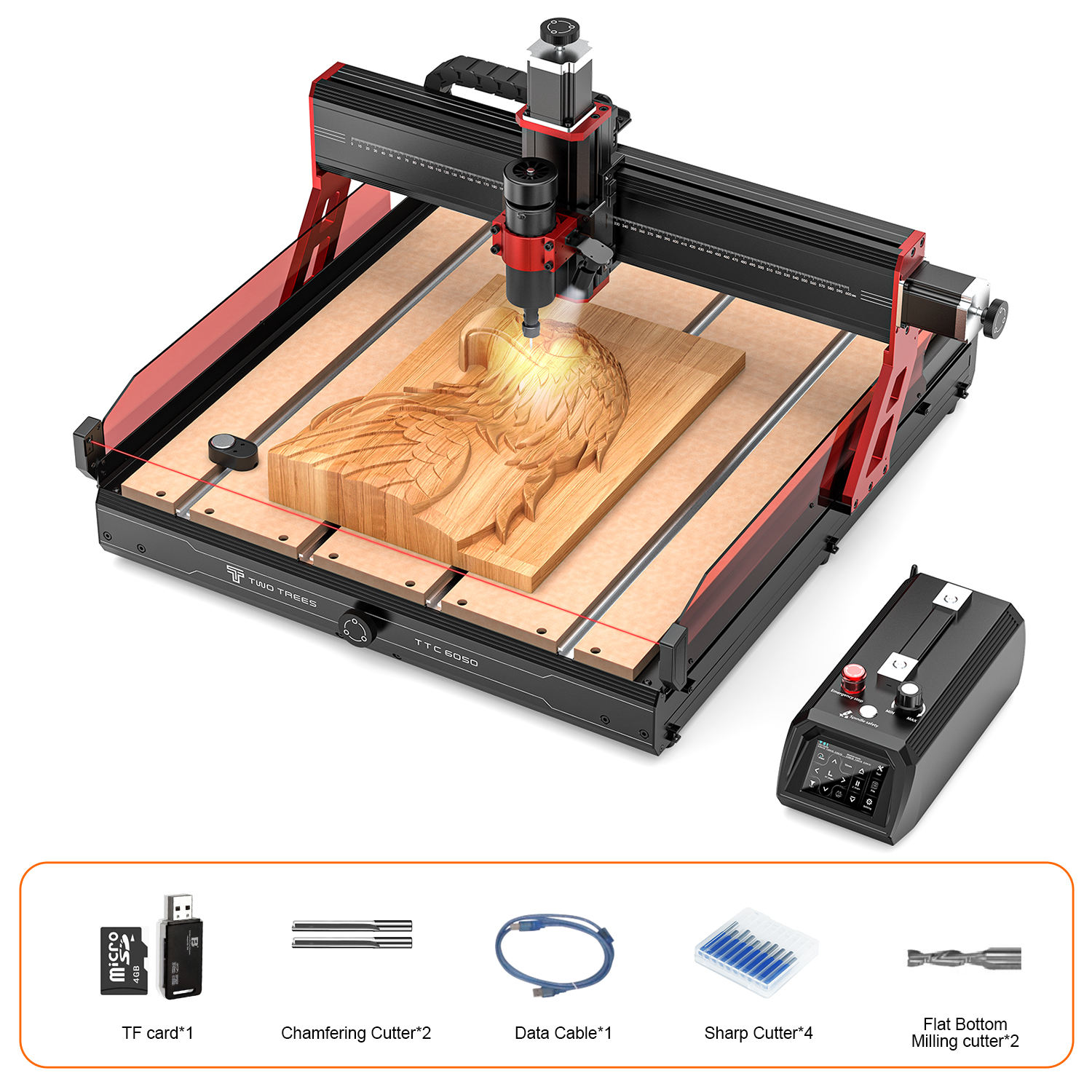

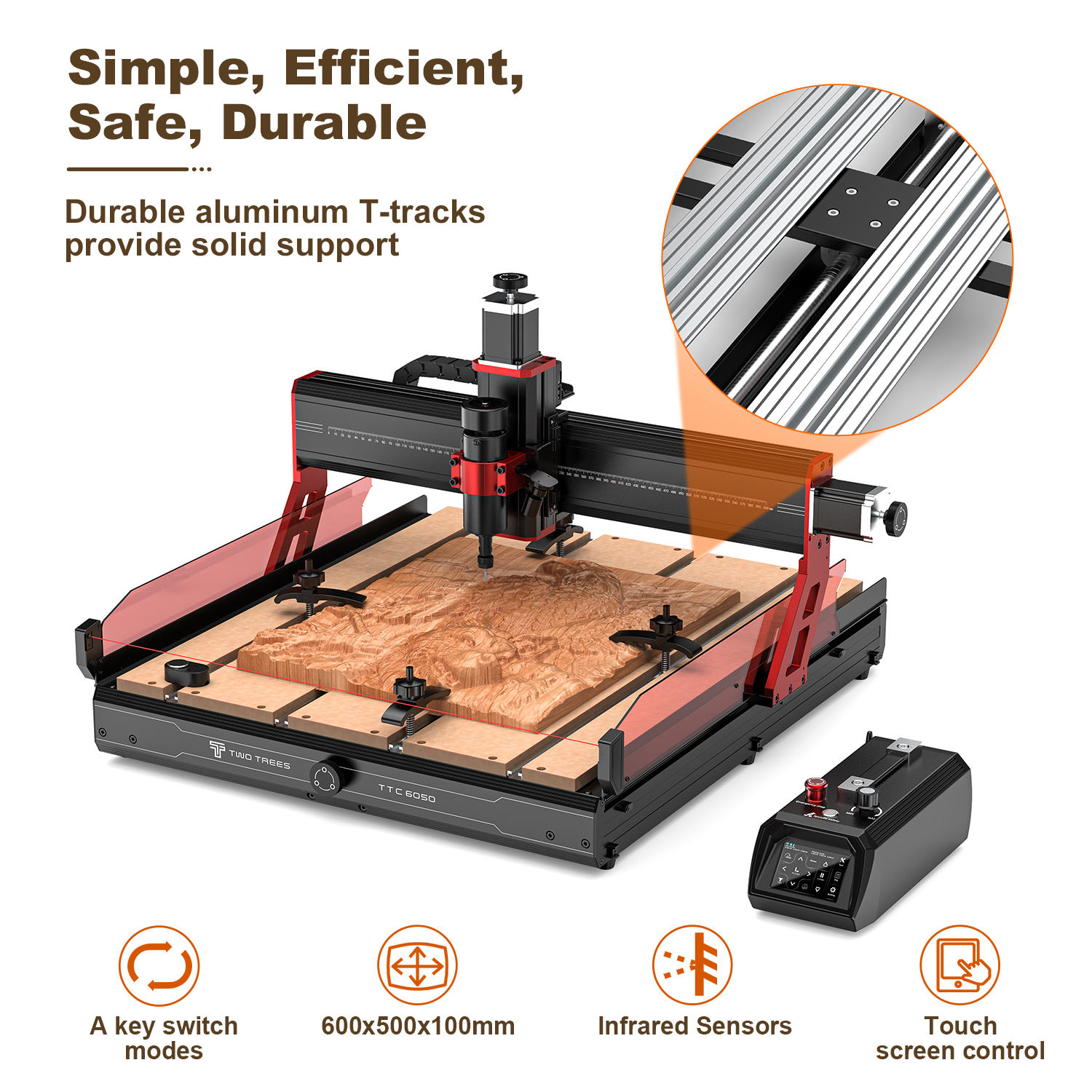

Product Name: TTC6050 CNC Multi-function Wood Milling Machine
Model: TTC6050
Brand: TWOTREES
Machine Type: CNC Engraving Machine
Number of Axes: 3
Spindle Type: Single-phase Spindle
Origin: Guangdong, China
Net Weight: 40 kg

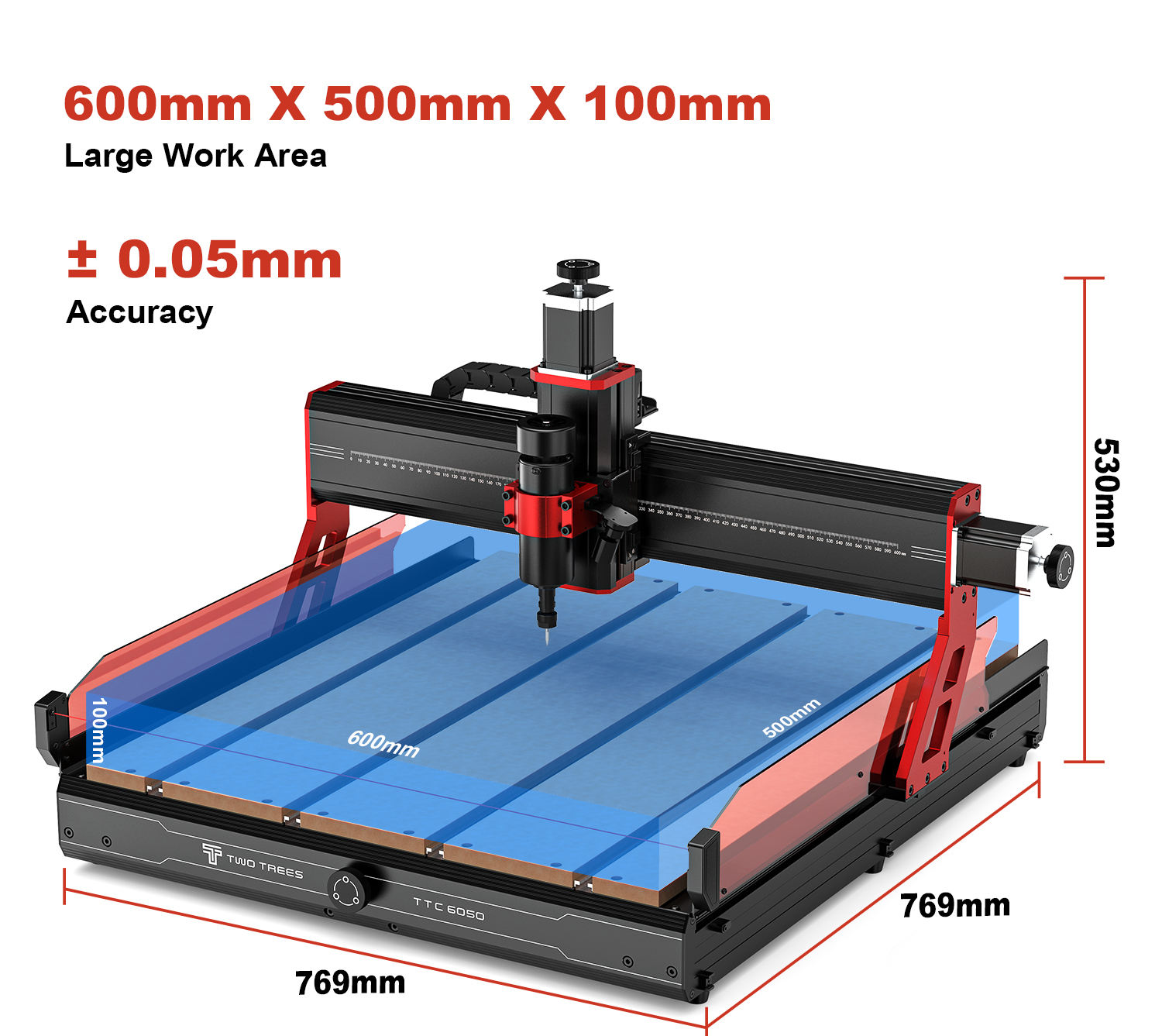

Overall Dimension (L×W×H): 811×791×530 mm
Machine Frame Material: Aluminum Profile + Plastic
Power Supply & Spindle

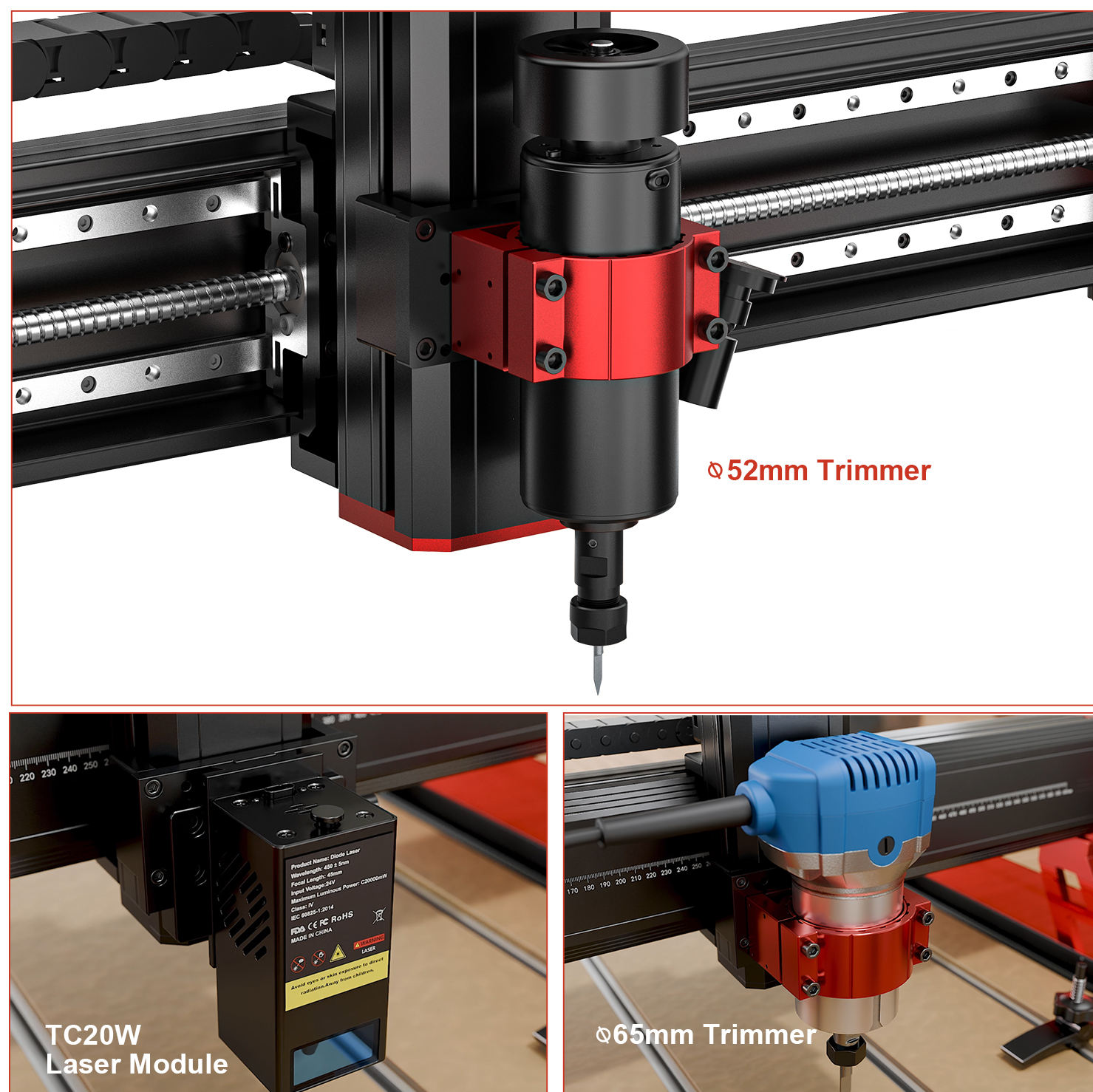

Spindle Motor: 500W Spindle Motor
Spindle Speed Range: 1 – 8000 rpm, Max. 12000 rpm
Power Supply: 24V, two options: 5A 120W / 4A 150W
Core Components: Motor, Bearings
Working Travel & Machining Accuracy
X-axis Travel: 460 mm
Y-axis Travel: 460 mm
Positioning Accuracy: 0.05 mm
X/Y/Z 3-Axis Repeat Positioning Accuracy: 0.05 mm
Machining Tolerance: ±0.05 mm
Engraving Speed: 5000 mm/min
Applicable Materials
Engravable Materials: Wood, soft aluminum, plastic, acrylic, PVC, PVB and other soft materials
Core Selling Points: Automatic operation, multi-axis linkage
Control & Connection
Control Screen: 3.5-inch color touch screen
Connection Mode: USB wired connection, 2.4GHz Wi-Fi wireless connection
Factory Inspection & Warranty Service
Factory Inspection Documents: Factory test video and mechanical test report available on request
Whole Machine Warranty: 1 Year
Core Components Warranty: 1 Year
