Description
| Item | Parameter |
|---|---|
| Brand Name | TWOTREES |
| Machine Type | Engraving Machine |
| CNC Supported | Yes (CNC) |
| Number of Axes | 3 |
| Voltage | 24V (110V – 240V) |
| Power Supply | 24V (110V – 240V) |
| Applicable Processing Materials | Multiple materials |
| Core Selling Points | Multifunctional / Automatic |
| Core Components | Bearings, Motor |
| Spindle Motor | 775 spindle motor |
| Spindle Speed Range (r.p.m) | 1 – 8000 rpm |
| Positioning Accuracy (mm) | 0.1 |

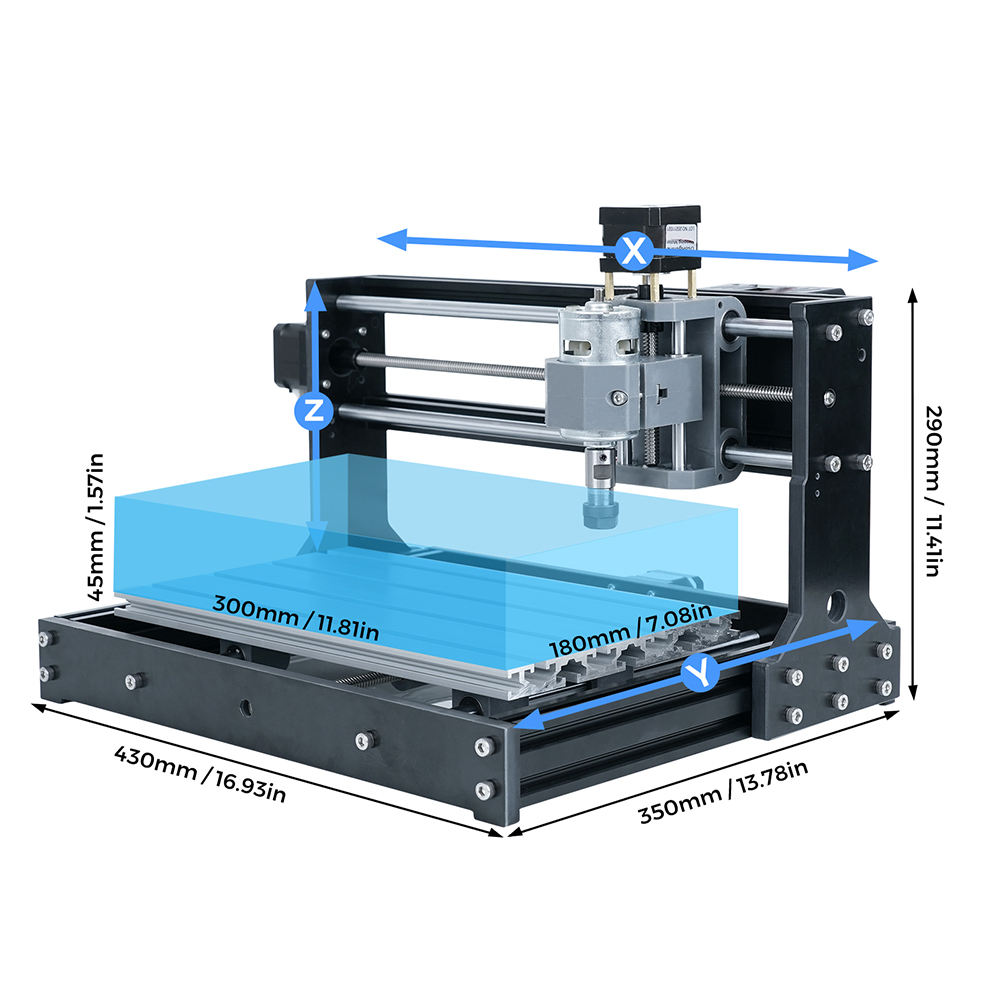

| X-axis Travel (mm) | 300 |
| Y-axis Travel (mm) | 180 |
| Repeat Positioning Accuracy (X/Y/Z) (mm) | 0.1 |
| Overall Dimension (LWH) | 420×355×280 mm |
| Bed Dimension | 300×180×40 mm |
| Net Weight (kg) | 7.5 |
| Controlling Software Application | High Precision Multi Spindles Wood Router |
| Multi Spindle Configuration | Switchable laser head |
| Other Functions | Equipped with replaceable drill bits for metal engraving; compatible with replaceable laser head |
| Supported Operating Systems | Windows XP / Win7 / Win8 / Win10 / Linux |
| Processable Materials | Wood, plastic, aluminum plate, brass, acrylic |

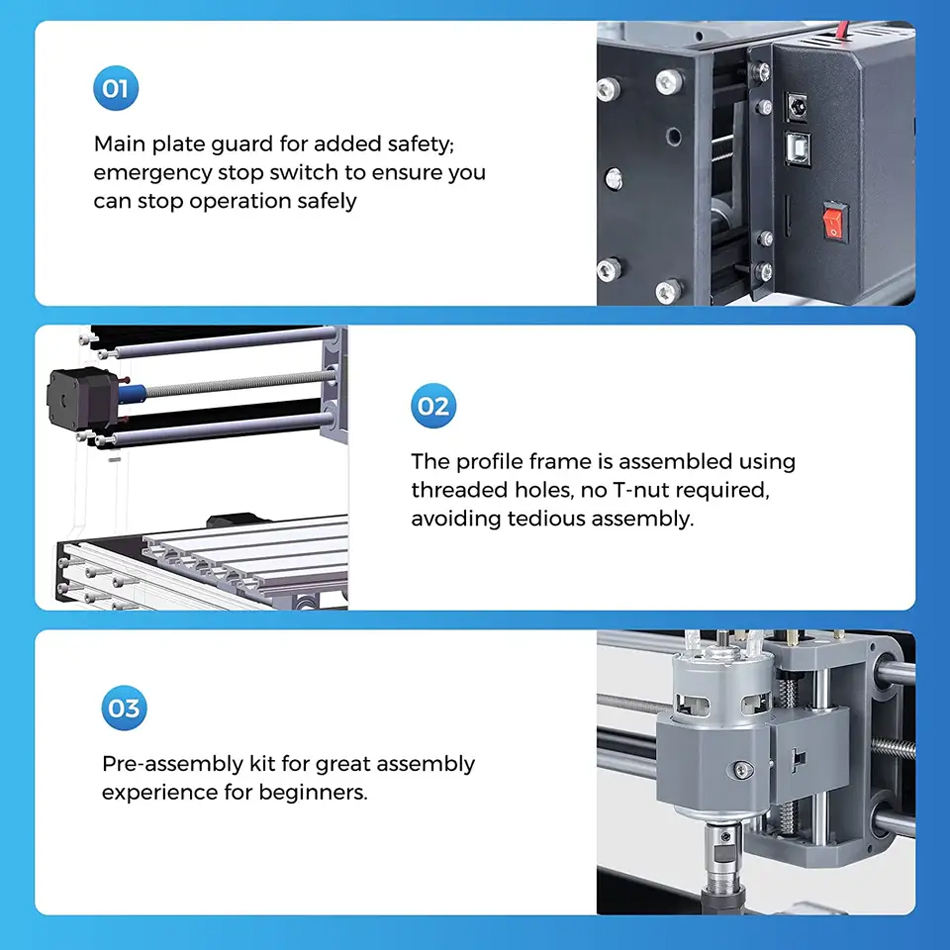

| Main Features | Equipped with coupling and double nuts to eliminate tolerance; no extra connecting parts required |
| Standard Drill Bits | Diameter: 3.175 mm, Tip size: 0.1 mm, Length: 30 mm |
| Factory Inspection Video | Available upon request |
| Mechanical Test Report | Available upon request |
| Place of Origin | Guangdong, China |
| Warranty | 1 Year |
| After-sales Service Provided | Online technical support |
| Sales Unit | Single unit |
| Single Package Dimension | 43×42×17 cm |
| Single Product Gross Weight (kg) | 8.000 |
