Description
| Parameter | Specification |
|---|---|
| Number of Axes | 3 |
| Voltage | 24V (110V-240V) |
| Machine Type | Engraving Machine |
| Number of Spindles | Multi-material |
| Key Selling Points | Multifunctional / Automatic |
| Core Components | Bearings, Motor |
| Warranty | 1 Year |
| CNC or Not | CNC |
| Video Inspection on Delivery | Available |
| Machinery Test Report | Available |
| Place of Origin | Guangdong, China |
| Weight (kg) | 7.5 |
| Spindle Speed Range (r.p.m) | 1 – 8000 rpm |
| Positioning Accuracy (mm) | 0.1 |

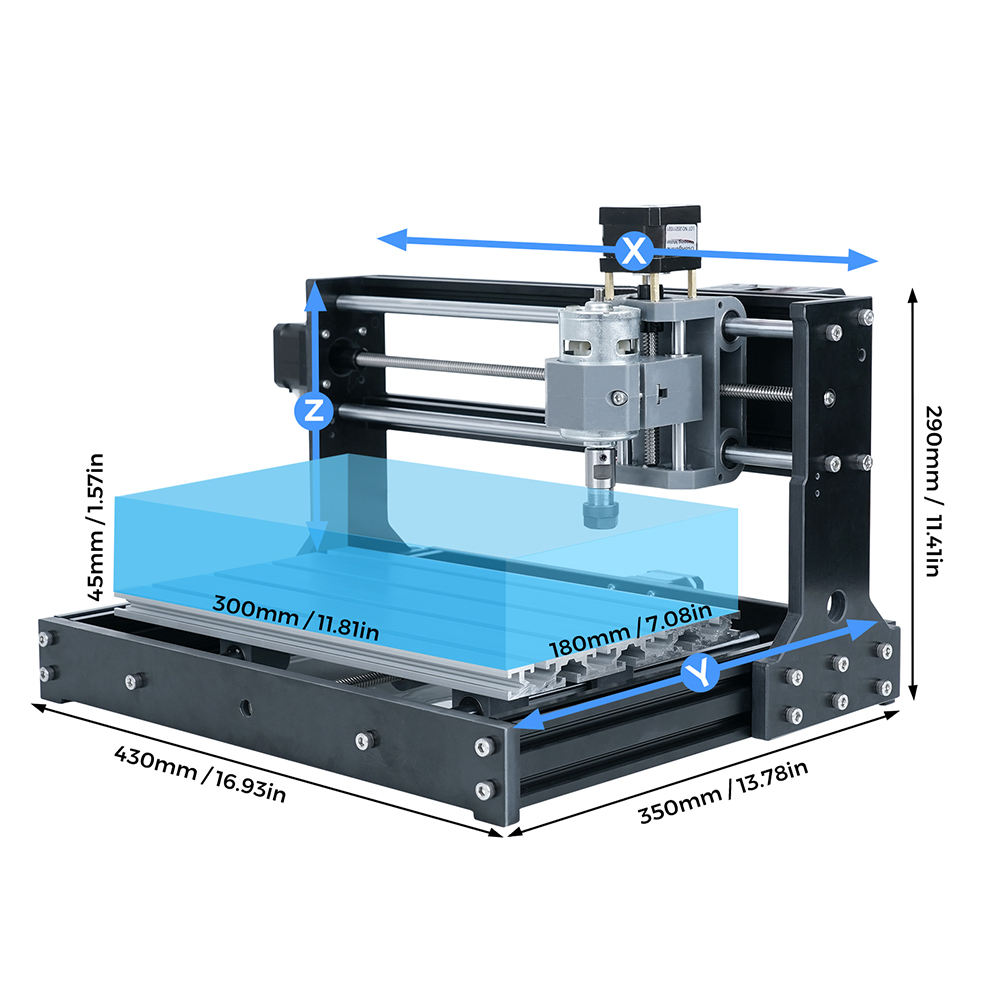

| Travel (X-axis) (mm) | 300 |
| Travel (Y-axis) (mm) | 180 |
| Repeat Positioning Accuracy (X/Y/Z) (mm) | 0.1 |
| Spindle Motor Power | 775 W spindle motor |
| Brand Name | TWOTREES |
| Dimensions (L×W×H) | 420 × 355 × 280 mm |
| Control Software | High-precision multi-axis wood engraving machine |
| Other Applications | Replaceable drill bits for metal engraving; laser head switchable |
| Multi-axis | Yes |
| Switchable Laser Head | Yes |
| Bed Size | 300 × 180 × 40 mm |
| Power Supply | 24V (11V-240V) |
| Supported Systems | Windows XP / Win7 / Win8 / Win10 / Linux |
| Applicable Materials | Wood + Plastic + Aluminum plate – Brass + Acrylic |
| Features | Coupling, double nut tolerance, no connectors |
| After-sales Service | Online support |
| Drill Bit | Diameter: 3.175mm, Tip: 0.1mm, Length: 30mm |
Packaging & Shipping Information
| Item | Detail |
|---|---|
| Sales Unit | Single item |
| Single Package Size | 43 × 42 × 17 cm |
| Single Product Gross Weight | 8.700 kg |
